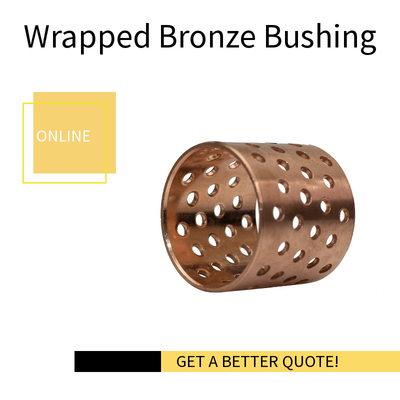

BRM 80 FB092 envolveu os rolamentos de luva de bronze Oilless

Name: BRM 80 FB092 envolveu os rolamentos de luva de bronze Oilless
Brand: JIAXING VIIPLUS INTERNATIO NAL TRADING CO.,LTD
SKU: GLIDLAGER
Availability: InStock

Nome da marca:	VIIPLUS
Número do modelo:	GLIDLAGER
MOQ:	Negociável
preço:	negociável
Condições de pagamento:	T/T
Capacidade de abastecimento:	buchas de bronze da luva, China, fabricantes, fornecedores, fábrica, auto por atacado, metálico que

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

gleitlagerbuchsen a porcelana

Certificação:

ISO 9001

Material:

CuSn8 Bronze

Type:

GLIDLAGER

Bushing:

Metric Size 45X50X40mm

Dimension:

Customized Dimension Bushings

Applictaion:

Bearing of Hoisting Equipment

Get A Better Quote:

tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer:

https://www.viiplus.com/

High Light::

Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing

Gleitalger:

A plain bearing, or more commonly sliding contact bearing and slide bearing, is the simplest type of bearing, comprising just a bearing surface and no rolling elements. Therefore, the journal slides over the bearing surface. The simplest example of a plain

Bush Bearings Manufacturers Suppliers Exporters:

plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/

Detalhes da embalagem:

CAIXA DE MADEIRA DA PÁLETE DE MADEIRA DA CAIXA DA EXPORTAÇÃO

Habilidade da fonte:

buchas de bronze da luva, China, fabricantes, fornecedores, fábrica, auto por atacado, metálico que

Destacar:

Rolamentos de luva de bronze de Oilless

Rolamentos de luva FB092 de bronze

Rolamentos de bronze de BRM 80 Bush

Descrição do produto

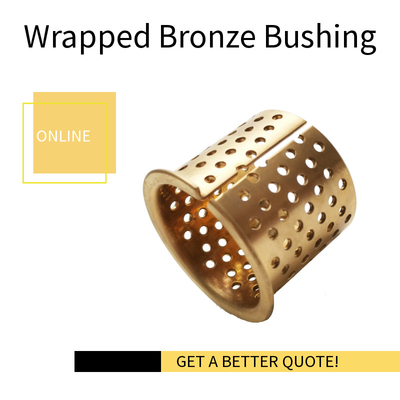

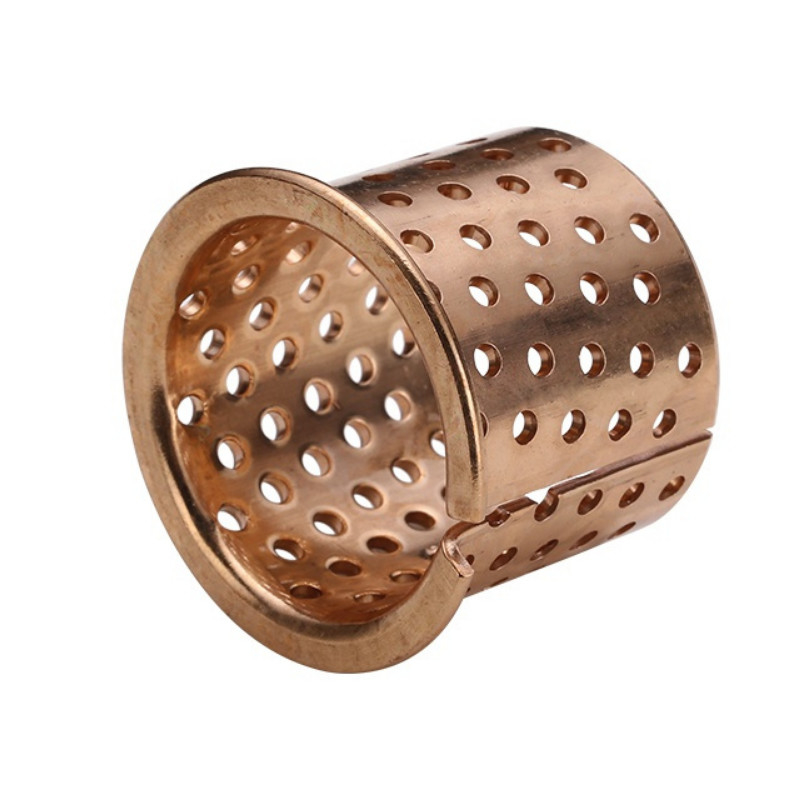

Bucha de rolamento FB092 - Bucha de ombro de alta eficiência e qualidade superior

BRM 80 FB092 Rolamentos de bronze envoltos Bucha para equipamento de elevação

Os rolamentos de manga de bronze envolto BRM 80 FB092 são rolamentos sem óleo que apresentam uma construção de manga de bronze envolto. Esses rolamentos são projetados para operar sem a necessidade de lubrificação externa, contando, em vez disso, com as propriedades autolubrificantes do material de bronze. A manga de bronze envolto fornece excelente resistência ao desgaste e capacidade de carga, garantindo uma operação suave e confiável em várias aplicações. Os rolamentos BRM 80 FB092 são adequados para uso em ambientes de alta temperatura e alta pressão, tornando-os uma escolha ideal para máquinas e equipamentos industriais.

Buchas de bronze com reservatórios de graxa (BRO-MET, FB090, BRM10, WB800)
As mangas de bronze com reservatórios de graxa (BRO-MET) minimizam o risco de uma peça quebrar devido à falta de graxa. Graças a esse design, a vida útil da manga é estendida. Isso significa que ela protegerá os mecanismos do equipamento que esfregam contra superaquecimento e falha prematura.
As mangas de bronze são resistentes a fatores ambientais. Podem ser usadas em máquinas e equipamentos de tipo industrial. A operação é acompanhada por baixos níveis de ruído.
Nosso catálogo oferece itens de bronze com diâmetro interno a partir de 10 mm e diâmetro externo a partir de 12 mm. O formato é cilíndrico. A liga de bronze foi usada na produção, o que atende aos requisitos do padrão internacional DIN 17662.

Bucha BUS77792

Peças de reposição em BRONZE SINTERIZADO AUTOLUBRIFICANTES para máquinas de mineração.TABELA DE TAMANHOS DE ROLAMENTOS DE BRONZE ENVELOPADO.pdf

BMZ 4020
BMZ/L 4040S
BMB.6530

Bucha sem óleo, deslizante, deslizante,Bucha de rolamentos de bronze envolto BRM 80 FB092

Bucha de bronze enrolada cusn8-FB092-1010	10	12	10
Bucha de bronze enrolada cusn8-FB092-1012	10	12	12
Bucha de bronze enrolada cusn8-FB092-1015	10	12	15
Bucha de bronze enrolada cusn8-FB092-1020	10	12	20
Bucha de bronze enrolada cusn8-FB092-1108	11	13	8
Bucha de bronze enrolada cusn8-FB092-1109	11	13	9
Bucha de bronze enrolada cusn8-FB092-1110	11	13	10
Bucha de bronze enrolada cusn8-FB092-1112	11	13	12
Bucha de bronze enrolada cusn8-FB092-1206	12	14	6
Bucha de bronze enrolada cusn8-FB092-1208	12	14	8
Bucha de bronze enrolada cusn8-FB092-1210	12	14	10
Bucha de bronze enrolada cusn8-FB092-1212	12	14	12
Bucha de bronze enrolada cusn8-FB092-1214	12	14	14
Bucha de bronze enrolada cusn8-FB092-1215	12	14	15
Bucha de bronze enrolada cusn8-FB092-1216	12	14	16
Bucha de bronze enrolada cusn8-FB092-1220	12	14	20
Bucha de bronze enrolada cusn8-FB092-1225	12	14	25
Bucha de bronze enrolada cusn8-FB092-1308	13	15	8
Bucha de bronze enrolada cusn8-FB092-1309	13	15	9
Bucha de bronze enrolada cusn8-FB092-1310	13	15	10
Bucha de bronze enrolada cusn8-FB092-1312	13	15	12
Bucha de bronze enrolada cusn8-FB092-1315	13	15	15
Bucha de bronze enrolada cusn8-FB092-1410	14	16	10
Bucha de bronze enrolada cusn8-FB092-1412	14	16	12
Bucha de bronze enrolada cusn8-FB092-1415	14	16	15
Bucha de bronze enrolada cusn8-FB092-1420	14	16	20
Bucha de bronze enrolada cusn8-FB092-1422	14	16	22
Bucha de bronze enrolada cusn8-FB092-1425	14	16	25
Bucha de bronze enrolada cusn8-FB092-1508	15	17	8
Bucha de bronze enrolada cusn8-FB092-1510	15	17	10
Bucha de bronze enrolada cusn8-FB092-1512	15	17	12
Bucha de bronze enrolada cusn8-FB092-1515	15	17	15
Bucha de bronze enrolada cusn8-FB092-1518	15	17	18
Bucha de bronze enrolada cusn8-FB092-1520	15	17	20
Bucha de bronze enrolada cusn8-FB092-1525	15	17	25
Bucha de bronze enrolada cusn8-FB092-1608	16	18	8
Bucha de bronze enrolada cusn8-FB092-1610	16	18	10
Bucha de bronze enrolada cusn8-FB092-1612	16	18	12
Bucha de bronze enrolada cusn8-FB092-1615	16	18	15
Bucha de bronze enrolada cusn8-FB092-1618	16	18	18
Bucha de bronze enrolada cusn8-FB092-1620	16	18	20
Bucha de bronze enrolada cusn8-FB092-1625	16	18	25
Bucha de bronze enrolada cusn8-FB092-1708	17	19	8
Bucha de bronze enrolada cusn8-FB092-1710	17	19	10
Bucha de bronze enrolada cusn8-FB092-1712	17	19	12
Bucha de bronze enrolada cusn8-FB092-1715	17	19	15
Bucha de bronze enrolada cusn8-FB092-1718	17	19	18
Bucha de bronze enrolada cusn8-FB092-1720	17	19	20
Bucha de bronze enrolada cusn8-FB092-1725	17	19	25
Bucha de bronze enrolada cusn8-FB092-1808	18	20	8
Bucha de bronze enrolada cusn8-FB092-1810	18	20	10
Bucha de bronze enrolada cusn8-FB092-1812	18	20	12
Bucha de bronze enrolada cusn8-FB092-1815	18	20	15
Bucha de bronze enrolada cusn8-FB092-1820	18	20	20
Bucha de bronze enrolada cusn8-FB092-1825	18	20	25
Bucha de bronze enrolada cusn8-FB092-1830	18	20	30
Bucha de bronze enrolada cusn8-FB092-2008	20	23	8
Bucha de bronze enrolada cusn8-FB092-2010	20	23	10
Bucha de bronze enrolada cusn8-FB092-2012	20	23	12
Bucha de bronze enrolada cusn8-FB092-2015	20	23	15
Bucha de bronze enrolada cusn8-FB092-2020	20	23	20
Bucha de bronze enrolada cusn8-FB092-2025	20	23	25
Bucha de bronze enrolada cusn8-FB092-2030	20	23	30
Bucha de bronze enrolada cusn8-FB092-2035	20	23	35
Bucha de bronze enrolada cusn8-FB092-2040	20	23	40
Bucha de bronze enrolada cusn8-FB092-2210	22	25	10
Bucha de bronze enrolada cusn8-FB092-2212	22	25	12
Bucha de bronze enrolada cusn8-FB092-2215	22	25	15
Bucha de bronze enrolada cusn8-FB092-2220	22	25	20
Bucha de bronze enrolada cusn8-FB092-2225	22	25	25
Bucha de bronze enrolada cusn8-FB092-2230	22	25	30
Bucha de bronze enrolada cusn8-FB092-2235	22	25	35
Bucha de bronze enrolada cusn8-FB092-2238	22	25	38
Bucha de bronze enrolada cusn8-FB092-2240	22	25	40
Bucha de bronze enrolada cusn8-FB092-2245	22	25	45
Bucha de bronze enrolada cusn8-FB092-2250	22	25	50
Bucha de bronze enrolada cusn8-FB092-2410	24	27	10
Bucha de bronze enrolada cusn8-FB092-2412	24	27	12
Bucha de bronze enrolada cusn8-FB092-2415	24	27	15
Bucha de bronze enrolada cusn8-FB092-2420	24	27	20
Bucha de bronze enrolada cusn8-FB092-2425	24	27	25
Bucha de bronze enrolada cusn8-FB092-2428	24	27	28
Bucha de bronze enrolada cusn8-FB092-2430	24	27	30
Bucha de bronze enrolada cusn8-FB092-2432	24	27	32
Bucha de bronze enrolada cusn8-FB092-2435	24	27	35
Bucha de bronze enrolada cusn8-FB092-2438	24	27	38
Bucha de bronze enrolada cusn8-FB092-2440	24	27	40
Bucha de bronze enrolada cusn8-FB092-2450	24	27	50
Bucha de bronze enrolada cusn8-FB092-2510	25	28	10
Bucha de bronze enrolada cusn8-FB092-2512	25	28	12
Bucha de bronze enrolada cusn8-FB092-2515	25	28	15
Bucha de bronze enrolada cusn8-FB092-2520	25	28	20
Bucha de bronze enrolada cusn8-FB092-2525	25	28	25
Bucha de bronze enrolada cusn8-FB092-2528	25	28	28
Bucha de bronze enrolada cusn8-FB092-2530	25	28	30
Bucha de bronze enrolada cusn8-FB092-2532	25	28	32
Bucha de bronze enrolada cusn8-FB092-2535	25	28	35
Bucha de bronze enrolada cusn8-FB092-2540	25	28	40
Bucha de bronze enrolada cusn8-FB092-2550	25	28	50
Bucha de bronze enrolada cusn8-FB092-2560	25	28	60
Bucha de bronze enrolada cusn8-FB092-2610	26	30	10
Bucha de bronze enrolada cusn8-FB092-2612	26	30	12
Bucha de bronze enrolada cusn8-FB092-2615	26	30	15
Bucha de bronze enrolada cusn8-FB092-2620	26	30	20
Bucha de bronze enrolada cusn8-FB092-2625	26	30	25
Bucha de bronze enrolada cusn8-FB092-2630	26	30	30
Bucha de bronze enrolada cusn8-FB092-2635	26	30	35
Bucha de bronze enrolada cusn8-FB092-2640	26	30	40
Bucha de bronze enrolada cusn8-FB092-2650	26	30	50
Bucha de bronze enrolada cusn8-FB092-2810	28	31	10
Bucha de bronze enrolada cusn8-FB092-2812	28	31	12
Bucha de bronze enrolada cusn8-FB092-2815	28	31	15
Bucha de bronze enrolada cusn8-FB092-2820	28	31	20
Bucha de bronze enrolada cusn8-FB092-2825	28	31	25
Bucha de bronze enrolada cusn8-FB092-2830	28	31	30
Bucha de bronze enrolada cusn8-FB092-2832	28	31	32
Bucha de bronze enrolada cusn8-FB092-2835	28	31	35
Bucha de bronze enrolada cusn8-FB092-2840	28	31	40
Bucha de bronze enrolada cusn8-FB092-3010	30	34	10
Bucha de bronze enrolada cusn8-FB092-3012	30	34	12
Bucha de bronze enrolada cusn8-FB092-3015	30	34	15
Bucha de bronze enrolada cusn8-FB092-3020	30	34	20
Bucha de bronze enrolada cusn8-FB092-3025	30	34	25
Bucha de bronze enrolada cusn8-FB092-3028	30	34	28
Bucha de bronze enrolada cusn8-FB092-3030	30	34	30
Bucha de bronze enrolada cusn8-FB092-3032	30	34	32
Bucha de bronze enrolada cusn8-FB092-3035	30	34	35
Bucha de bronze enrolada cusn8-FB092-3038	30	34	38
Bucha de bronze enrolada cusn8-FB092-3040	30	34	40
Bucha de bronze enrolada cusn8-FB092-3045	30	34	45
Bucha de bronze enrolada cusn8-FB092-3050	30	34	50
Bucha de bronze enrolada cusn8-FB092-3210	32	36	10
Bucha de bronze enrolada cusn8-FB092-3212	32	36	12
Bucha de bronze enrolada cusn8-FB092-3215	32	36	15
Bucha de bronze enrolada cusn8-FB092-3218	32	36	18
Bucha de bronze enrolada cusn8-FB092-3220	32	36	20
Bucha de bronze enrolada cusn8-FB092-3225	32	36	25
Bucha de bronze enrolada cusn8-FB092-3230	32	36	30
Bucha de bronze enrolada cusn8-FB092-3235	32	36	35
Bucha de bronze enrolada cusn8-FB092-3240	32	36	40
Bucha de bronze enrolada cusn8-FB092-3245	32	36	45
Bucha de bronze enrolada cusn8-FB092-3250	32	36	50
Bucha de bronze enrolada cusn8-FB092-3410	34	38	10
Bucha de bronze enrolada cusn8-FB092-3412	34	38	12
Bucha de bronze enrolada cusn8-FB092-3415	34	38	15
Bucha de bronze enrolada cusn8-FB092-3420	34	38	20
Bucha de bronze enrolada cusn8-FB092-3425	34	38	25
Bucha de bronze enrolada cusn8-FB092-3430	34	38	30
Bucha de bronze enrolada cusn8-FB092-3435	34	38	35
Bucha de bronze enrolada cusn8-FB092-3440	34	38	40
Bucha de bronze enrolada cusn8-FB092-3445	34	38	45
Bucha de bronze enrolada cusn8-FB092-3510	35	39	10
Bucha de bronze enrolada cusn8-FB092-3512	35	39	12
Bucha de bronze enrolada cusn8-FB092-3515	35	39	15
Bucha de bronze enrolada cusn8-FB092-3520	35	39	20
Bucha de bronze enrolada cusn8-FB092-3525	35	39	25
Bucha de bronze enrolada cusn8-FB092-3530	35	39	30
Bucha de bronze enrolada cusn8-FB092-3535	35	39	35
Bucha de bronze enrolada cusn8-FB092-3540	35	39	40
Bucha de bronze enrolada cusn8-FB092-3545	35	39	45
Bucha de bronze enrolada cusn8-FB092-3550	35	39	50
Bucha de bronze enrolada cusn8-FB092-3610	36	40	10
Bucha de bronze enrolada cusn8-FB092-3612	36	40	12
Bucha de bronze enrolada cusn8-FB092-3615	36	40	15
Bucha de bronze enrolada cusn8-FB092-3620	36	40	20
Bucha de bronze enrolada cusn8-FB092-3625	36	40	25
Bucha de bronze enrolada cusn8-FB092-3630	36	40	30
Bucha de bronze enrolada cusn8-FB092-3635	36	40	35
Bucha de bronze enrolada cusn8-FB092-3640	36	40	40
Bucha de bronze enrolada cusn8-FB092-3645	36	40	45
Bucha de bronze enrolada cusn8-FB092-3650	36	40	50
Bucha de bronze enrolada cusn8-FB092-3812	38	42	12
Bucha de bronze enrolada cusn8-FB092-3815	38	42	15
Bucha de bronze enrolada cusn8-FB092-3820	38	42	20
Bucha de bronze enrolada cusn8-FB092-3825	38	42	25
Bucha de bronze enrolada cusn8-FB092-3830	38	42	30
Bucha de bronze enrolada cusn8-FB092-3835	38	42	35
Bucha de bronze enrolada cusn8-FB092-3840	38	42	40
Bucha de bronze enrolada cusn8-FB092-3845	38	42	45
Bucha de bronze enrolada cusn8-FB092-3850	38	42	50
Bucha de bronze enrolada cusn8-FB092-3855	38	42	55
Bucha de bronze enrolada cusn8-FB092-3860	38	42	60
Bucha de bronze enrolada cusn8-FB092-4012	40	44	12
Bucha de bronze enrolada cusn8-FB092-4015	40	44	15
Bucha de bronze enrolada cusn8-FB092-4020	40	44	20
Bucha de bronze enrolada cusn8-FB092-4025	40	44	25
Bucha de bronze enrolada cusn8-FB092-4030	40	44	30
Bucha de bronze enrolada cusn8-FB092-4035	40	44	35
Bucha de bronze enrolada cusn8-FB092-4040	40	44	40
Bucha de bronze enrolada cusn8-FB092-4045	40	44	45
Bucha de bronze enrolada cusn8-FB092-4050	40	44	50
Bucha de bronze enrolada cusn8-FB092-4055	40	44	55
Bucha de bronze enrolada cusn8-FB092-4060	40	44	60
Bucha de bronze enrolada cusn8-FB092-4212	42	46	12
Bucha de bronze enrolada cusn8-FB092-4215	42	46	15
Bucha de bronze enrolada cusn8-FB092-4220	42	46	20
Bucha de bronze enrolada cusn8-FB092-4225	42	46	25
Bucha de bronze enrolada cusn8-FB092-4230	42	46	30
Bucha de bronze enrolada cusn8-FB092-4235	42	46	35
Bucha de bronze enrolada cusn8-FB092-4240	42	46	40
Bucha de bronze enrolada cusn8-FB092-4245	42	46	45
Bucha de bronze enrolada cusn8-FB092-4250	42	46	50
Bucha de bronze enrolada cusn8-FB092-4255	42	46	55
Bucha de bronze enrolada cusn8-FB092-4260	42	46	60
Bucha de bronze enrolada cusn8-FB092-4412	44	48	12
Bucha de bronze enrolada cusn8-FB092-4415	44	48	15
Bucha de bronze enrolada cusn8-FB092-4420	44	48	20
Bucha de bronze enrolada cusn8-FB092-4425	44	48	25
Bucha de bronze enrolada cusn8-FB092-4430	44	48	30
Bucha de bronze enrolada cusn8-FB092-4435	44	48	35
Bucha de bronze enrolada cusn8-FB092-4440	44	48	40
Bucha de bronze enrolada cusn8-FB092-4445	44	48	45
Bucha de bronze enrolada cusn8-FB092-4450	44	48	50
Bucha de bronze enrolada cusn8-FB092-4455	44	48	55
Bucha de bronze enrolada cusn8-FB092-4460	44	48	60
Bucha de bronze enrolada cusn8-FB092-4518	45	50	18
Bucha de bronze enrolada cusn8-FB092-4520	45	50	20
Bucha de bronze enrolada cusn8-FB092-4525	45	50	25
Bucha de bronze enrolada cusn8-FB092-4530	45	50	30
Bucha de bronze enrolada cusn8-FB092-4535	45	50	35
Bucha de bronze enrolada cusn8-FB092-4540	45	50	40
Bucha de bronze enrolada cusn8-FB092-4545	45	50	45
Bucha de bronze enrolada cusn8-FB092-4550	45	50	50
Bucha de bronze enrolada cusn8-FB092-4555	45	50	55
Bucha de bronze enrolada cusn8-FB092-4560	45	50	60
Bucha de bronze enrolada cusn8-FB092-5015	50	55	15
Bucha de bronze enrolada cusn8-FB092-5020	50	55	20
Bucha de bronze enrolada cusn8-FB092-5025	50	55	25
Bucha de bronze enrolada cusn8-FB092-5030	50	55	30
Bucha de bronze enrolada cusn8-FB092-5035	50	55	35
Bucha de bronze enrolada cusn8-FB092-5040	50	55	40
Bucha de bronze enrolada cusn8-FB092-5045	50	55	45
Bucha de bronze enrolada cusn8-FB092-5050	50	55	50
Bucha de bronze enrolada cusn8-FB092-5055	50	55	55
Bucha de bronze enrolada cusn8-FB092-5060	50	55	60
Bucha de bronze enrolada cusn8-FB092-5065	50	55	65
Bucha de bronze enrolada cusn8-FB092-5070	50	55	70
Bucha de bronze enrolada cusn8-FB092-5515	55	60	15
Bucha de bronze enrolada cusn8-FB092-5520	55	60	20
Bucha de bronze enrolada cusn8-FB092-5525	55	60	25
Bucha de bronze enrolada cusn8-FB092-5530	55	60	30
Bucha de bronze enrolada cusn8-FB092-5535	55	60	35
Bucha de bronze enrolada cusn8-FB092-5540	55	60	40
Bucha de bronze enrolada cusn8-FB092-5545	55	60	45
Bucha de bronze enrolada cusn8-FB092-5550	55	60	50
Bucha de bronze enrolada cusn8-FB092-5555	55	60	55
Bucha de bronze enrolada cusn8-FB092-5560	55	60	60
Bucha de bronze enrolada cusn8-FB092-5565	55	60	65
Bucha de bronze enrolada cusn8-FB092-5570	55	60	70
Bucha de bronze enrolada cusn8-FB092-6015	60	65	15
Bucha de bronze enrolada cusn8-FB092-6020	60	65	20
Bucha de bronze enrolada cusn8-FB092-6025	60	65	25
Bucha de bronze enrolada cusn8-FB092-6030	60	65	30
Bucha de bronze enrolada cusn8-FB092-6035	60	65	35
Bucha de bronze enrolada cusn8-FB092-6040	60	65	40
Bucha de bronze enrolada cusn8-FB092-6045	60	65	45
Bucha de bronze enrolada cusn8-FB092-6050	60	65	50
Bucha de bronze enrolada cusn8-FB092-6055	60	65	55
Bucha de bronze enrolada cusn8-FB092-6060	60	65	60
Bucha de bronze enrolada cusn8-FB092-6065	60	65	65
Bucha de bronze enrolada cusn8-FB092-6070	60	65	70
Bucha de bronze enrolada cusn8-FB092-6075	60	65	75
Bucha de bronze enrolada cusn8-FB092-6080	60	65	80
Bucha de bronze enrolada cusn8-FB092-6085	60	65	85
Bucha de bronze enrolada cusn8-FB092-6090	60	65	90
Bucha de bronze enrolada cusn8-FB092-6515	65	70	15
Bucha de bronze enrolada cusn8-FB092-6520	65	70	20
Bucha de bronze enrolada cusn8-FB092-6530	65	70	30
Bucha de bronze enrolada cusn8-FB092-6540	65	70	40
Bucha de bronze enrolada cusn8-FB092-6550	65	70	50
Bucha de bronze enrolada cusn8-FB092-6560	65	70	60
Bucha de bronze enrolada cusn8-FB092-6570	65	70	70
Bucha de bronze enrolada cusn8-FB092-6580	65	70	80
Bucha de bronze enrolada cusn8-FB092-6590	65	70	90
Bucha de bronze enrolada cusn8-FB092-7020	70	75	20
Bucha de bronze enrolada cusn8-FB092-7030	70	75	30
Bucha de bronze enrolada cusn8-FB092-7040	70	75	40
Bucha de bronze enrolada cusn8-FB092-7045	70	75	45
Bucha de bronze enrolada cusn8-FB092-7050	70	75	50
Bucha de bronze enrolada cusn8-FB092-7060	70	75	60
Bucha de bronze enrolada cusn8-FB092-7070	70	75	70
Bucha de bronze enrolada cusn8-FB092-7080	70	75	80
Bucha de bronze enrolada cusn8-FB092-7090	70	75	90
Bucha de bronze enrolada cusn8-FB092-7530	75	80	30
Bucha de bronze enrolada cusn8-FB092-7540	75	80	40
Bucha de bronze enrolada cusn8-FB092-7550	75	80	50
Bucha de bronze enrolada cusn8-FB092-7560	75	80	60
Bucha de bronze enrolada cusn8-FB092-7570	75	80	70
Bucha de bronze enrolada cusn8-FB092-7580	75	80	80
Bucha de bronze enrolada cusn8-FB092-7590	75	80	90
Bucha de bronze enrolada cusn8-FB092-8030	80	85	30
Bucha de bronze enrolada cusn8-FB092-8040	80	85	40
Bucha de bronze enrolada cusn8-FB092-8050	80	85	50
Bucha de bronze enrolada cusn8-FB092-8060	80	85	60
Bucha de bronze enrolada cusn8-FB092-8070	80	85	70
Bucha de bronze enrolada cusn8-FB092-8080	80	85	80
Bucha de bronze enrolada cusn8-FB092-8090	80	85	90
Bucha de bronze enrolada cusn8-FB092-80100	80	85	100
Bucha de bronze enrolada cusn8-FB092-8530	85	90	30
Bucha de bronze enrolada cusn8-FB092-8540	85	90	40
Bucha de bronze enrolada cusn8-FB092-8550	85	90	50
Bucha de bronze enrolada cusn8-FB092-8560	85	90	60
Bucha de bronze enrolada cusn8-FB092-8570	85	90	70
Bucha de bronze enrolada cusn8-FB092-8580	85	90	80
Bucha de bronze enrolada cusn8-FB092-8590	85	90	90
Bucha de bronze enrolada cusn8-FB092-85100	85	90	100
Bucha de bronze enrolada cusn8-FB092-9030	90	95	30
Bucha de bronze enrolada cusn8-FB092-9040	90	95	40
Bucha de bronze enrolada cusn8-FB092-9050	90	95	50
Bucha de bronze enrolada cusn8-FB092-9060	90	95	60
Bucha de bronze enrolada cusn8-FB092-9070	90	95	70
Bucha de bronze enrolada cusn8-FB092-9080	90	95	80
Bucha de bronze enrolada cusn8-FB092-9090	90	95	90
Bucha de bronze enrolada cusn8-FB092-90100	90	95	100
Bucha de bronze enrolada cusn8-FB092-9530	95	100	30
Bucha de bronze enrolada cusn8-FB092-9540	95	100	40
Bucha de bronze enrolada cusn8-FB092-9550	95	100	50
Bucha de bronze enrolada cusn8-FB092-9560	95	100	60
Bucha de bronze enrolada cusn8-FB092-9570	95	100	70
Bucha de bronze enrolada cusn8-FB092-9580	95	100	80
Bucha de bronze enrolada cusn8-FB092-9590	95	100	90
Bucha de bronze enrolada cusn8-FB092-95100	95	100	100
Bucha de bronze enrolada cusn8-FB092-10030	100	105	30
Bucha de bronze enrolada cusn8-FB092-10040	100	105	40
Bucha de bronze enrolada cusn8-FB092-10050	100	105	50
Bucha de bronze enrolada cusn8-FB092-10060	100	105	60
Bucha de bronze enrolada cusn8-FB092-10070	100	105	70
Bucha de bronze enrolada cusn8-FB092-10080	100	105	80
Bucha de bronze enrolada cusn8-FB092-10090	100	105	90
Bucha de bronze enrolada cusn8-FB092-10095	100	105	95
Bucha de bronze enrolada cusn8-FB092-100100	100	105	100
Bucha de bronze enrolada cusn8-FB092-100115	100	105	115
Bucha de bronze enrolada cusn8-FB092-10550	105	110	50
Bucha de bronze enrolada cusn8-FB092-10560	105	110	60
Bucha de bronze enrolada cusn8-FB092-10570	105	110	70
Bucha de bronze enrolada cusn8-FB092-10580	105	110	80
Bucha de bronze enrolada cusn8-FB092-10590	105	110	90
Bucha de bronze enrolada cusn8-FB092-105100	105	110	100
Bucha de bronze enrolada cusn8-FB092-105115	105	110	115
Bucha de bronze enrolada cusn8-FB092-11050	110	115	50
Bucha de bronze enrolada cusn8-FB092-11060	110	115	60
Bucha de bronze enrolada cusn8-FB092-11070	110	115	70
Bucha de bronze enrolada cusn8-FB092-11080	110	115	80
Bucha de bronze enrolada cusn8-FB092-11090	110	115	90
Bucha de bronze enrolada cusn8-FB092-110100	110	115	100
Bucha de bronze enrolada cusn8-FB092-110115	110	115	115
Bucha de bronze enrolada cusn8-FB092-11550	115	120	50
Bucha de bronze enrolada cusn8-FB092-11560	115	120	60
Bucha de bronze enrolada cusn8-FB092-11570	115	120	70
Bucha de bronze enrolada cusn8-FB092-11580	115	120	80
Bucha de bronze enrolada cusn8-FB092-11590	115	120	90
Bucha de bronze enrolada cusn8-FB092-115100	115	120	100
Bucha de bronze enrolada cusn8-FB092-115115	115	120	115
Bucha de bronze enrolada cusn8-FB092-12050	120	125	50
Bucha de bronze enrolada cusn8-FB092-12060	120	125	60
Bucha de bronze enrolada cusn8-FB092-12070	120	125	70
Bucha de bronze enrolada cusn8-FB092-12080	120	125	80
Bucha de bronze enrolada cusn8-FB092-12090	120	125	90
Bucha de bronze enrolada cusn8-FB092-120100	120	125	100
Bucha de bronze enrolada cusn8-FB092-120120	120	125	120
Bucha de bronze enrolada cusn8-FB092-12550	125	130	50
Bucha de bronze enrolada cusn8-FB092-12560	125	130	60
Bucha de bronze enrolada cusn8-FB092-12570	125	130	70
Bucha de bronze enrolada cusn8-FB092-12580	125	130	80
Bucha de bronze enrolada cusn8-FB092-12590	125	130	90
Bucha de bronze enrolada cusn8-FB092-125100	125	130	100
Bucha de bronze enrolada cusn8-FB092-125115	125	130	115
Bucha de bronze enrolada cusn8-FB092-13060	130	135	60
Bucha de bronze enrolada cusn8-FB092-13070	130	135	70
Bucha de bronze enrolada cusn8-FB092-13080	130	135	80
Bucha de bronze enrolada cusn8-FB092-13090	130	135	90
Bucha de bronze enrolada cusn8-FB092-130100	130	135	100
Bucha de bronze enrolada cusn8-FB092-130120	130	135	120
Bucha de bronze enrolada cusn8-FB092-13560	135	140	60
Bucha de bronze enrolada cusn8-FB092-13570	135	140	70
Bucha de bronze enrolada cusn8-FB092-13580	135	140	80
Bucha de bronze enrolada cusn8-FB092-13590	135	140	90
Bucha de bronze enrolada cusn8-FB092-135100	135	140	100
Bucha de bronze enrolada cusn8-FB092-135120	135	140	120
Bucha de bronze enrolada cusn8-FB092-14060	140	145	60
Bucha de bronze enrolada cusn8-FB092-14070	140	145	70
Bucha de bronze enrolada cusn8-FB092-14080	140	145	80
Bucha de bronze enrolada cusn8-FB092-14090	140	145	90
Bucha de bronze enrolada cusn8-FB092-140100	140	145	100
Bucha de bronze enrolada cusn8-FB092-14560	145	150	60
Bucha de bronze enrolada cusn8-FB092-14570	145	150	70
Bucha de bronze enrolada cusn8-FB092-14580	145	150	80
Bucha de bronze enrolada cusn8-FB092-14590	145	150	90
Bucha de bronze enrolada cusn8-FB092-145110	145	150	100
Bucha de bronze enrolada cusn8-FB092-145120	145	150	120
Bucha de bronze enrolada cusn8-FB092-15060	150	155	60
Bucha de bronze enrolada cusn8-FB092-15070	150	155	70
Bucha de bronze enrolada cusn8-FB092-15080	150	155	80
Bucha de bronze enrolada cusn8-FB092-15090	150	155	90
Bucha de bronze enrolada cusn8-FB092-150100	150	155	100
Bucha de bronze enrolada cusn8-FB092-15550	155	160	50
Bucha de bronze enrolada cusn8-FB092-15560	155	160	60
Bucha de bronze enrolada cusn8-FB092-15570	155	160	70
Bucha de bronze enrolada cusn8-FB092-15580	155	160	80
Bucha de bronze enrolada cusn8-FB092-15590	155	160	90
Bucha de bronze enrolada cusn8-FB092-155100	155	160	100
Bucha de bronze enrolada cusn8-FB092-16060	160	165	60
Bucha de bronze enrolada cusn8-FB092-16070	160	165	70
Bucha de bronze enrolada cusn8-FB092-16080	160	165	80
Bucha de bronze enrolada cusn8-FB092-16090	160	165	90
Bucha de bronze enrolada cusn8-FB092-160100	160	165	100
Bucha de bronze enrolada cusn8-FB092-160110	160	165	110
Bucha de bronze enrolada cusn8-FB092-160120	160	165	120
Bucha de bronze enrolada cusn8-FB092-160130	160	165	130
Bucha de bronze enrolada cusn8-FB092-160140	160	165	140
Bucha de bronze enrolada cusn8-FB092-160150	160	165	150
Bucha de bronze enrolada cusn8-FB092-16560	165	170	60
Bucha de bronze enrolada cusn8-FB092-16570	165	170	70
Bucha de bronze enrolada cusn8-FB092-16580	165	170	80
Bucha de bronze enrolada cusn8-FB092-16590	165	170	90
Bucha de bronze enrolada cusn8-FB092-165100	165	170	100
Bucha de bronze enrolada cusn8-FB092-165110	165	170	110
Bucha de bronze enrolada cusn8-FB092-165120	165	170	120
Bucha de bronze enrolada cusn8-FB092-165130	165	170	130
Bucha de bronze enrolada cusn8-FB092-165140	165	170	140
Bucha de bronze enrolada cusn8-FB092-165150	165	170	150
Bucha de bronze enrolada cusn8-FB092-17060	170	175	60
Bucha de bronze enrolada cusn8-FB092-17070	170	175	70
Bucha de bronze enrolada cusn8-FB092-17080	170	175	80
Bucha de bronze enrolada cusn8-FB092-17090	170	175	90
Bucha de bronze enrolada cusn8-FB092-170100	170	175	100
Bucha de bronze enrolada cusn8-FB092-170110	170	175	110
Bucha de bronze enrolada cusn8-FB092-170120	170	175	120
Bucha de bronze enrolada cusn8-FB092-170430	170	175	130
Bucha de bronze enrolada cusn8-FB092-170140	170	175	140
Bucha de bronze enrolada cusn8-FB092-170150	170	175	150
Bucha de bronze enrolada cusn8-FB092-17560	175	180	60
Bucha de bronze enrolada cusn8-FB092-17570	175	180	70
Bucha de bronze enrolada cusn8-FB092-17580	175	180	80
Bucha de bronze enrolada cusn8-FB092-17590	175	180	90
Bucha de bronze enrolada cusn8-FB092-175100	175	180	100
Bucha de bronze enrolada cusn8-FB092-175110	175	180	110
Bucha de bronze enrolada cusn8-FB092-175120	175	180	120
Bucha de bronze enrolada cusn8-FB092-175130	175	180	130
Bucha de bronze enrolada cusn8-FB092-175140	175	180	140
Bucha de bronze enrolada cusn8-FB092-175150	175	180	150
Bucha de bronze enrolada cusn8-FB092-18060	180	185	60
Bucha de bronze enrolada cusn8-FB092-18070	180	185	70
Bucha de bronze enrolada cusn8-FB092-18080	180	185	80
Bucha de bronze enrolada cusn8-FB092-18090	180	185	90
Bucha de bronze enrolada cusn8-FB092-180100	180	185	100
Bucha de bronze enrolada cusn8-FB092-180110	180	185	110
Bucha de bronze enrolada cusn8-FB092-180120	180	185	120
Bucha de bronze enrolada cusn8-FB092-180130	180	185	130
Bucha de bronze enrolada cusn8-FB092-180140	180	185	140
Bucha de bronze enrolada cusn8-FB092-180150	180	185	150
Bucha de bronze enrolada cusn8-FB092-18560	185	190	60
Bucha de bronze enrolada cusn8-FB092-18570	185	190	70
Bucha de bronze enrolada cusn8-FB092-18580	185	190	80
Bucha de bronze enrolada cusn8-FB092-18590	185	190	90
Bucha de bronze enrolada cusn8-FB092-185100	185	190	100
Bucha de bronze enrolada cusn8-FB092-185110	185	190	110
Bucha de bronze enrolada cusn8-FB092-185120	185	190	120
Bucha de bronze enrolada cusn8-FB092-185130	185	190	130
Bucha de bronze enrolada cusn8-FB092-185140	185	190	140
Bucha de bronze enrolada cusn8-FB092-185150	185	190	150
Bucha de bronze enrolada cusn8-FB092-19060	190	195	60
Bucha de bronze enrolada cusn8-FB092-19070	190	195	70
Bucha de bronze enrolada cusn8-FB092-19080	190	195	80
Bucha de bronze enrolada cusn8-FB092-19090	190	195	90
Bucha de bronze enrolada cusn8-FB092-190100	190	195	100
Bucha de bronze enrolada cusn8-FB092-190110	190	195	110
Bucha de bronze enrolada cusn8-FB092-190120	190	195	120
Bucha de bronze enrolada cusn8-FB092-190130	190	195	130
Bucha de bronze enrolada cusn8-FB092-190140	190	195	140
Bucha de bronze enrolada cusn8-FB092-190150	190	195	150
Bucha de bronze enrolada cusn8-FB092-19560	195	200	60
Bucha de bronze enrolada cusn8-FB092-19570	195	200	70
Bucha de bronze enrolada cusn8-FB092-19580	195	200	80
Bucha de bronze enrolada cusn8-FB092-19590	195	200	90
Bucha de bronze enrolada cusn8-FB092-195100	195	200	100
Bucha de bronze enrolada cusn8-FB092-195110	195	200	110
Bucha de bronze enrolada cusn8-FB092-195120	195	200	120
Bucha de bronze enrolada cusn8-FB092-195130	195	200	130
Bucha de bronze enrolada cusn8-FB092-195140	195	200	140
Bucha de bronze enrolada cusn8-FB092-195150	195	200	150
Bucha de bronze enrolada cusn8-FB092-20060	200	205	60
Bucha de bronze enrolada cusn8-FB092-20070	200	205	70
Bucha de bronze enrolada cusn8-FB092-20080	200	205	80
Bucha de bronze enrolada cusn8-FB092-20090	200	205	90
Bucha de bronze enrolada cusn8-FB092-200100	200	205	100
Bucha de bronze enrolada cusn8-FB092-200110	200	205	110
Bucha de bronze enrolada cusn8-FB092-200120	200	205	120
Bucha de bronze enrolada cusn8-FB092-200130	200	205	130
Bucha de bronze enrolada cusn8-FB092-200140	200	205	140
Bucha de bronze enrolada cusn8-FB092-200150	200	205	150
Bucha de bronze enrolada cusn8-FB092-20560	205	210	60
Bucha de bronze enrolada cusn8-FB092-20570	205	210	70
Bucha de bronze enrolada cusn8-FB092-20580	205	210	80
Bucha de bronze enrolada cusn8-FB092-20590	205	210	90
Bucha de bronze enrolada cusn8-FB092-205100	205	210	100
Bucha de bronze enrolada cusn8-FB092-205110	205	210	110
Bucha de bronze enrolada cusn8-FB092-205120	205	210	120
Bucha de bronze enrolada cusn8-FB092-205130	205	210	130
Bucha de bronze enrolada cusn8-FB092-205140	205	210	140
Bucha de bronze enrolada cusn8-FB092-205150	205	210	150
Bucha de bronze enrolada cusn8-FB092-21060	210	215	60
Bucha de bronze enrolada cusn8-FB092-21070	210	215	70
Bucha de bronze enrolada cusn8-FB092-21080	210	215	80
Bucha de bronze enrolada cusn8-FB092-21090	210	215	90
Bucha de bronze enrolada cusn8-FB092-210100	210	215	100
Bucha de bronze enrolada cusn8-FB092-210110	210	215	110
Bucha de bronze enrolada cusn8-FB092-210120	210	215	120
Bucha de bronze enrolada cusn8-FB092-210130	210	215	130
Bucha de bronze enrolada cusn8-FB092-210140	210	215	140
Bucha de bronze enrolada cusn8-FB092-210150	210	215	150
Bucha de bronze enrolada cusn8-FB092-21560	215	220	60
Bucha de bronze enrolada cusn8-FB092-21570	215	220	70
Bucha de bronze enrolada cusn8-FB092-21580	215	220	80
Bucha de bronze enrolada cusn8-FB092-21590	215	220	90
Bucha de bronze enrolada cusn8-FB092-215100	215	220	100
Bucha de bronze enrolada cusn8-FB092-215110	215	220	110
Bucha de bronze enrolada cusn8-FB092-215120	215	220	120
Bucha de bronze enrolada cusn8-FB092-215130	215	220	130
Bucha de bronze enrolada cusn8-FB092-215140	215	220	140
Bucha de bronze enrolada cusn8-FB092-215150	215	220	150
Bucha de bronze enrolada cusn8-FB092-22060	220	225	60
Bucha de bronze enrolada cusn8-FB092-22070	220	225	70
Bucha de bronze enrolada cusn8-FB092-22080	220	225	80
Bucha de bronze enrolada cusn8-FB092-22090	220	225	90
Bucha de bronze enrolada cusn8-FB092-220100	220	225	100
Bucha de bronze enrolada cusn8-FB092-220110	220	225	110
Bucha de bronze enrolada cusn8-FB092-220120	220	225	120
Bucha de bronze enrolada cusn8-FB092-220130	220	225	130
Bucha de bronze enrolada cusn8-FB092-220140	220	225	140
Bucha de bronze enrolada cusn8-FB092-220150	220	225	150
Bucha de bronze enrolada cusn8-FB092-22560	225	230	60
Bucha de bronze enrolada cusn8-FB092-22570	225	230	70
Bucha de bronze enrolada cusn8-FB092-22580	225	230	80
Bucha de bronze enrolada cusn8-FB092-22590	225	230	90
Bucha de bronze enrolada cusn8-FB092-225100	225	230	100
Bucha de bronze enrolada cusn8-FB092-225110	225	230	110
Bucha de bronze enrolada cusn8-FB092-225120	225	230	120
Bucha de bronze enrolada cusn8-FB092-225130	225	230	130
Bucha de bronze enrolada cusn8-FB092-225140	225	230	140
Bucha de bronze enrolada cusn8-FB092-225150	225	230	150
Bucha de bronze enrolada cusn8-FB092-23060	230	235	60
Bucha de bronze enrolada cusn8-FB092-23070	230	235	70
Bucha de bronze enrolada cusn8-FB092-23080	230	235	80
Bucha de bronze enrolada cusn8-FB092-23090	230	235	90
Bucha de bronze enrolada cusn8-FB092-230100	230	235	100
Bucha de bronze enrolada cusn8-FB092-230110	230	235	110
Bucha de bronze enrolada cusn8-FB092-230120	230	235	120
Bucha de bronze enrolada cusn8-FB092-230130	230	235	130
Bucha de bronze enrolada cusn8-FB092-230140	230	235	140
Bucha de bronze enrolada cusn8-FB092-230150	230	235	150
Bucha de bronze enrolada cusn8-FB092-24060	240	245	60
Bucha de bronze enrolada cusn8-FB092-24070	240	245	70
Bucha de bronze enrolada cusn8-FB092-24080	240	245	80
Bucha de bronze enrolada cusn8-FB092-24090	240	245	90
Bucha de bronze enrolada cusn8-FB092-240100	240	245	100
Bucha de bronze enrolada cusn8-FB092-240110	240	245	110
Bucha de bronze enrolada cusn8-FB092-240120	240	245	120
Bucha de bronze enrolada cusn8-FB092-240130	240	245	130
Bucha de bronze enrolada cusn8-FB092-240140	240	245	140
Bucha de bronze enrolada cusn8-FB092-240150	240	245	150
Bucha de bronze enrolada cusn8-FB092-25060	250	255	60
Bucha de bronze enrolada cusn8-FB092-25070	250	255	70
Bucha de bronze enrolada cusn8-FB092-25080	250	255	80
Bucha de bronze enrolada cusn8-FB092-25090	250	255	90
Bucha de bronze enrolada cusn8-FB092-250110	250	255	100
Bucha de bronze enrolada cusn8-FB092-250110	250	255	110
Bucha de bronze enrolada cusn8-FB092-250120	250	255	120
Bucha de bronze enrolada cusn8-FB092-250130	250	255	130
Bucha de bronze enrolada cusn8-FB092-250140	250	255	140
Bucha de bronze enrolada cusn8-FB092-250150	250	255	150
Bucha de bronze enrolada cusn8-FB092-26060	260	265	60
Bucha de bronze enrolada cusn8-FB092-26070	260	265	70
Bucha de bronze enrolada cusn8-FB092-26080	260	265	80
Bucha de bronze enrolada cusn8-FB092-26090	260	265	90
Bucha de bronze enrolada cusn8-FB092-260100	260	265	100
Bucha de bronze enrolada cusn8-FB092-260110	260	265	110
Bucha de bronze enrolada cusn8-FB092-260120	260	265	120
Bucha de bronze enrolada cusn8-FB092-260130	260	265	130
Bucha de bronze enrolada cusn8-FB092-260140	260	265	140
Bucha de bronze enrolada cusn8-FB092-260150	260	265	150
Bucha de bronze enrolada cusn8-FB092-27060	270	275	60
Bucha de bronze enrolada cusn8-FB092-27070	270	275	70
Bucha de bronze enrolada cusn8-FB092-27080	270	275	80
Bucha de bronze enrolada cusn8-FB092-27090	270	275	90
Bucha de bronze enrolada cusn8-FB092-270100	270	275	100
Bucha de bronze enrolada cusn8-FB092-270110	270	275	110
Bucha de bronze enrolada cusn8-FB092-270120	270	275	120
Bucha de bronze enrolada cusn8-FB092-270130	270	275	130
Bucha de bronze enrolada cusn8-FB092-270140	270	275	140
Bucha de bronze enrolada cusn8-FB092-270150	270	275	150
Bucha de bronze enrolada cusn8-FB092-28060	280	285	60
Bucha de bronze enrolada cusn8-FB092-28070	280	285	70
Bucha de bronze enrolada cusn8-FB092-28080	280	285	80
Bucha de bronze enrolada cusn8-FB092-280100	280	285	90
Bucha de bronze enrolada cusn8-FB092-280110	280	285	100
Bucha de bronze enrolada cusn8-FB092-280120	280	285	110
Bucha de bronze enrolada cusn8-FB092-280130	280	285	120
Bucha de bronze enrolada cusn8-FB092-280140	280	285	130
Bucha de bronze enrolada cusn8-FB092-280150	280	285	140
Bucha de bronze enrolada cusn8-FB092-280150	280	285	150
Bucha de bronze enrolada cusn8-FB092-29060	290	295	60
Bucha de bronze enrolada cusn8-FB092-29070	290	295	70
Bucha de bronze enrolada cusn8-FB092-29080	290	295	80
Bucha de bronze enrolada cusn8-FB092-29090	290	295	90
Bucha de bronze enrolada cusn8-FB092-290100	290	295	100
Bucha de bronze enrolada cusn8-FB092-290110	290	295	110
Bucha de bronze enrolada cusn8-FB092-290120	290	295	120
Bucha de bronze enrolada cusn8-FB092-290130	290	295	130
Bucha de bronze enrolada cusn8-FB092-290140	290	295	140
Bucha de bronze enrolada cusn8-FB092-290150	290	295	150
Bucha de bronze enrolada cusn8-FB092-30060	300	305	60
Bucha de bronze enrolada cusn8-FB092-30070	300	305	70
Bucha de bronze enrolada cusn8-FB092-30080	300	305	80
Bucha de bronze enrolada cusn8-FB092-30090	300	305	90
Bucha de bronze enrolada cusn8-FB092-300100	300	305	100
Bucha de bronze enrolada cusn8-FB092-300110	300	305	110
Bucha de bronze enrolada cusn8-FB092-300120	300	305	120

Tamanho de rolamento padrão FB092

Unidade:mm

e₁

e₂

eu⁰
^-0,40

100

0,5

0,3

FB092
1010

FB092
1015

FB092
1020

FB092
1210

FB092
1215

FB092
1220

FB092
1410

FB092
1415

FB092
1420

FB092
1425

FB092
1510

FB092
1515

FB092
1520

FB092
1525

FB092
1610

FB092
1615

FB092
1620

FB092
1625

FB092
1810

FB092
1815

FB092
1820

FB092
1825

0,8

0,4

FB092
2010

FB092
2015

FB092
2020

FB092
2025

FB092
2210

FB092
2215

FB092
2220

FB092
2225

FB092
2230

FB092
2415

FB092
2420

FB092
2425

FB092
2430

FB092
2515

FB092
2520

FB092
2525

FB092
2530

FB092
2815

FB092
2820

FB092
2825

FB092
2830

1.0

0,6

FB092
3015

FB092
3020

FB092
3025

FB092
3030

FB092
3035

FB092
3040

FB092
3215

FB092
3220

FB092
3225

FB092
3230

FB092
3235

FB092
3240

FB092
3515

FB092
3520

FB092
3025

FB092
3530

FB092
3535

FB092
3540

FB092
4020

FB092
4025

FB092
4030

FB092
4035

FB092
4040

FB092
4050

1.2

0,8

FB092
4520

FB092
4525

FB092
4530

FB092
4535

FB092
4540

FB092
4550

FB092
5020

FB092
5025

FB092
5030

FB092
5035

FB092
5040

FB092
5050

FB092
5060

FB092
5520

FB092
5525

FB092
5530

FB092
5535

FB092
5540

FB092
5550

FB092
5560

FB092
6025

FB092
6030

FB092
6035

FB092
6040

FB092
6050

FB092
6060

FB092
6070

FB092
6530

FB092
6535

FB092
6540

FB092
6550

FB092
6560

FB092
6570

FB092
7030

FB092
7035

FB092
7040

FB092
7050

FB092
7060

FB092
7070

FB092
7080

FB092
7530

FB092
7535

FB092
7540

FB092
7550

FB092
7560

FB092
7570

FB092
7580

1.4

0,8

FB092
8030

FB092
8035

FB092
8040

FB092
8050

FB092
8060

FB092
8070

FB092
8080

FB092
8530

FB092
8535

FB092
8540

FB092
8550

FB092
8560

FB092
8570

FB092
8580

FB092
8590

FB092
9030

FB092
9035

FB092
9040

FB092
9050

FB092
9060

FB092
9070

FB092
9080

FB092
9090

100

FB092
9540

FB092
9550

FB092
9560

FB092
9570

FB092
9580

FB092
9590

FB092
95100

100

105

FB092
10050

FB092
10060

FB092
10070

FB092
10080

FB092
10090

FB092
100100

105

110

FB092
10550

FB092
10560

FB092
10570

FB092
10580

FB092
10590

FB092
105100

110

115

FB092
11050

FB092
11060

FB092
11070

FB092
11080

FB092
11090

FB092
110100

e₁

e₂

eu⁰
^-0,40

100

115

120

1.4

0,8

FB092
11550

FB092
11560

FB092
11570

FB092
11580

FB092
11590

FB092
115110

120

125

FB092
12060

FB092
12070

FB092
12080

FB092
12090

FB092
120110

125

130

FB092
12560

FB092
12570

FB092
12580

FB092
12590

FB092
125110

130

135

FB092
13060

FB092
13070

FB092
13080

FB092
13090

FB092
130110

135

140

FB092
13560

FB092
13570

FB092
13580

FB092
13590

FB092
135110

140

145

FB092
14060

FB092
14070

FB092
14080

FB092
14090

FB092
140110

145

150

FB092
14560

FB092
14570

FB092
14580

FB092
14590

FB092
145110

150

155

FB092
15060

FB092
15070

FB092
15080

FB092
15090

FB092
150110

155

160

FB092
15560

FB092
15570

FB092
15580

FB092
15590

FB092
155110

160

165

FB092
16060

FB092
16070

FB092
16080

FB092
16090

FB092
160110

165

170

FB092
16560

FB092
16570

FB092
16580

FB092
16590

FB092
165110

170

175

FB092
17060

FB092
17070

FB092
17080

FB092
17090

FB092
170110

175

180

FB092
17560

FB092
17570

FB092
17580

FB092
17590

FB092
175110

180

185

FB092
18060

FB092
18070

FB092
18080

FB092
18090

FB092
180110

185

190

FB092
18560

FB092
18570

FB092
18580

FB092
18590

FB092
185110

190

195

FB092
19060

FB092
19070

FB092
19080

FB092
19090

FB092
190110

195

200

FB092
19560

FB092
19570

FB092
19580

FB092
19590

FB092
195110

200

205

FB092
20060

FB092
20070

FB092
20080

FB092
20090

FB092
200110

205

210

FB092
20560

FB092
20570

FB092
20580

FB092
20590

FB092
205110

215

220

FB092
21560

FB092
21570

FB092
21580

FB092
21590

FB092
215110

225

230

FB092
22560

FB092
22570

FB092
22580

FB092
22590

FB092
225110

230

235

FB092
23060

FB092
23070

FB092
23080

FB092
23090

FB092
230110

240

245

FB092
24060

FB092
24070

FB092
24080

FB092
24090

FB092
240110

250

255

FB092
25060

FB092
25070

FB092
25080

FB092
25090

FB092
250110

260

265

FB092
26060

FB092
26070

FB092
26080

FB092
26090

FB092
260110

270

275

FB092
27060

FB092
27070

FB092
27080

FB092
27090

FB092
270110

280

285

FB092
28060

FB092
28070

FB092
28080

FB092
28090

FB092
280110

290

295

FB092
29060

FB092
29070

FB092
29080

FB092
29090

FB092
290110

300

305

FB092
30060

FB092
30070

FB092
30080

FB092
30090

FB092
300110

As características básicas

ComCusN6.5P0.1 ou CusN8P0.3bronze como a matriz, o rolamento de layout de furo de bronze é projetado com furos de enchimento de óleo uniformes e ordenados. O óleo lubrificante é injetado após a montagem. O rolamento tem as vantagens degrande armazenamento de óleo, instalação conveniente e máquina de design pequeno, e pode substituir a manga de cobre para usar, muitoreduzindo o custo
O orifício interno do produto é cheio de poços de óleo, que podem armazenar uma grande quantidade de óleo durante o uso e estender o intervalo de reabastecimento.
2. Menos lubrificação com óleo, adequado para ocasiões em que é difícil adicionar lubrificação com óleo ou água;
3.Boa resistência ao desgaste, baixo coeficiente de atrito, elonga vida útil;
4. Pode ser usado na faixa de -100℃ a 200℃;
5.Bom desempenho de acoplamento, baixo ruído, sem poluição;
6. Estrutura de parede fina, leve, podereduzir o volume mecânico;
7. A matriz temcavidade de contração de alta densidade, livre de gás e grande capacidade de carga;
Atualmente, tem sido amplamente aplicado em várias peças deslizantes mecânicas, como máquinas e equipamentos de automação (escala, balanço, deslizamento, dobra, ciclotron, peças giratórias) da bucha guia do cilindro hidráulico, máquinas têxteis, máquinas de moldagem de plástico, máquinas de fundição sob pressão, máquinas de borracha, caminhões hidráulicos, automóveis, indústria de motocicletas, portos, conservação de água, construção, máquinas agrícolas, etc.

Longo serviçointervalos sob circunstâncias operacionais severas.

Os rolamentos de bronze envoltos são ideais para aplicações onde háaltos níveis de contaminação.Sua superfície de rolamento é provida de bolsas de lubrificação em formato de diamante ou com um padrão de furos.Os bolsos de lubrificação devem ser preenchidos com graxa quando o rolamento for instalado.Os rolamentos de bronze envoltos são produzidos de acordo com oNorma ISO 3547.

Materiais

Os rolamentos de bronze envoltos são feitos inteiramente de bronze fosforosoCuSn8.CuSn8é caracterizada pela pureza da liga com apenas umanível baixode impurezas. Rolamentos de bronze envoltos são produzidos a partir de tiras que são posteriormente envoltos e calibrados.

Lubrificação

Os rolamentos de bronze envoltos devem ser lubrificados com graxa ou óleo na instalação. Aboa qualidadeO lubrificante é essencial, pois iráreduzir atritoe desgaste formando uma película entre o mancal liso e o eixo. Para aplicações altamente contaminadas, recomendamos vedar o mancal. Isso protegerá tanto o mancal quanto o lubrificante.

Vantagens

As principais vantagens dos rolamentos de bronze envoltos incluem:

Intervalos de serviço longos
Não afetado por impurezas
Adequado paraambientes corrosivos
Adequado para cargas de impacto e vibrações embaixas velocidades
Boa dissipação de calor

Formulários

Os rolamentos de bronze envoltos são especialmente adequados para condições operacionais severas ondemanutenção frequentenão é possível. Aplicações comuns são:

Veículos agrícolas
Equipamento de elevação
No mar
Escavadeiras

Tipo	Grossura	Profundidade do óleo
FB090planadores	1 mm	0,3 a 0,4 mm
	1,5 mm	0,4 a 0,5 mm
	2mm	0,5 a 0,6 mm
	2,5 mm	0,6 a 0,7 mm
FB09Gplanadores FB08Gplanadores	0,65 mm	0,15 a 0,3 mm
	1 mm	0,3 a 0,4 mm
	1,5 mm	0,4 a 0,5 mm
	2mm	0,4 a 0,5 mm
	2,5 mm	0,4 a 0,5 mm

BRM 80 FB092 envolveu os rolamentos de luva de bronze Oilless 2

Tags:

arbustos oilless

Rolamento de bronze contínuo

Rolamentos de bronze envolvidos

Búsquedas de bronze envoltas

Buchas obstruídas grafite

Rolamento de bronze da grafite

Buchas de bronze da luva

Auto que lubrifica o rolamento liso

Cobre revestido de

gleitlager de bronze

Rolamentos lisos do polímero

POM Bushing

Arbustos bimetálicos do rolamento

ROLAMENTOS LISOS DE BRONZE

Placas do desgaste do lubrificante do auto

Buchas de aço inoxidável

Buchas de bronze do molde

Material de bronze da bucha

Bucha da válvula

Auto que lubrifica as buchas de bronze

rolamento de luva flangeado

Rolamento de deslizamento seco

arbustos oilless

Rolamento de bronze contínuo

Rolamentos de bronze envolvidos

Búsquedas de bronze envoltas

Buchas obstruídas grafite

Rolamento de bronze da grafite

Buchas de bronze da luva

Auto que lubrifica o rolamento liso

Cobre revestido de

gleitlager de bronze

Rolamentos lisos do polímero

POM Bushing

Arbustos bimetálicos do rolamento

ROLAMENTOS LISOS DE BRONZE

Placas do desgaste do lubrificante do auto

Buchas de aço inoxidável

Buchas de bronze do molde

Material de bronze da bucha

Bucha da válvula

Auto que lubrifica as buchas de bronze

rolamento de luva flangeado

Rolamento de deslizamento seco

BRM 80 FB092 envolveu os rolamentos de luva de bronze Oilless

BRM 80 FB092 envolveu os rolamentos de luva de bronze Oilless

Rolamentos de luva de bronze de Oilless

Rolamentos de luva FB092 de bronze

Rolamentos de bronze de BRM 80 Bush

Bucha de rolamento FB092 - Bucha de ombro de alta eficiência e qualidade superior

BRM 80 FB092 Rolamentos de bronze envoltos Bucha para equipamento de elevação

Bucha sem óleo, deslizante, deslizante,Bucha de rolamentos de bronze envolto BRM 80 FB092

Tamanho de rolamento padrão FB092

As características básicas

Materiais

Lubrificação

Vantagens

Formulários
