| Nome da marca: | VIIPLUS |
| Número do modelo: | GLIDLAGER |
| MOQ: | negociável |
| preço: | negociável |
| Condições de pagamento: | T/T |
| Capacidade de abastecimento: | buchas de bronze da luva, China, fabricantes, fornecedores, fábrica, auto por atacado, metálico que |

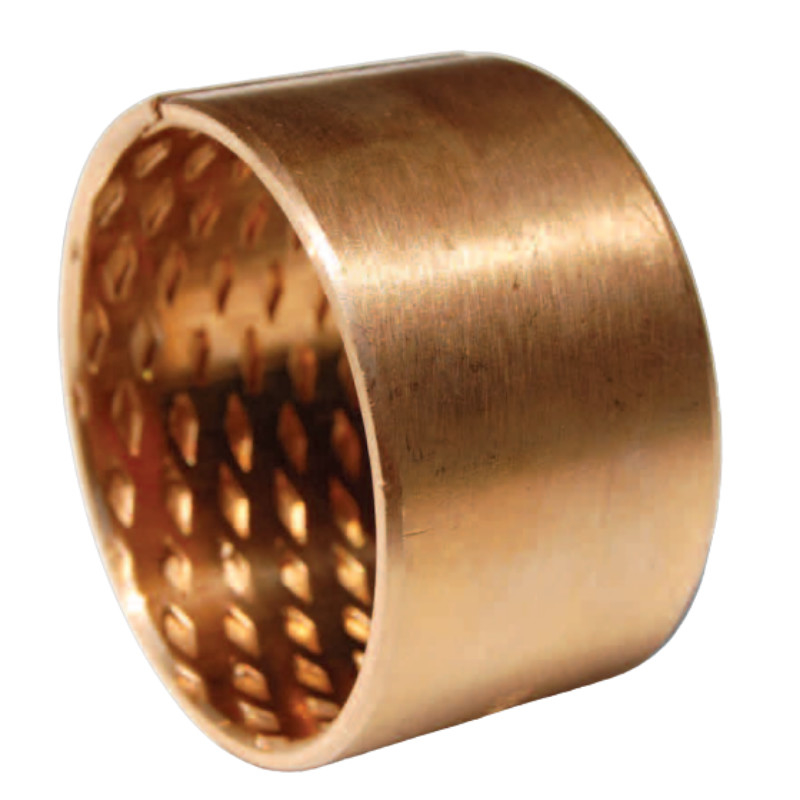

O BMZ Cylindrical Bushing WB900 e WB902 Bronze Bearing são componentes projetados com precisão para fornecer desempenho superior em várias aplicações industriais. Feitas de material de bronze de alta qualidade, essas buchas oferecem excelente resistência ao desgaste, durabilidade e capacidade de carga. O formato cilíndrico garante rotação suave e atrito reduzido, enquanto as propriedades autolubrificantes aumentam ainda mais a eficiência operacional. Os modelos WB900 e WB902 são especificamente adaptados para atender a diferentes requisitos de desempenho, permitindo que os clientes escolham a opção mais adequada para sua aplicação específica.
Buchas de bronze com reservatórios de graxa (BRO-MET, FB090, BRM10, WB800)
As mangas de bronze com reservatórios de graxa (BRO-MET) minimizam o risco de quebra de uma peça devido à falta de graxa. Graças a esse design, a vida útil da manga é estendida. Isso significa que ela protegerá os mecanismos do equipamento que esfregam contra superaquecimento e falha prematura.
As mangas de bronze são resistentes a fatores ambientais. Podem ser usadas em máquinas e equipamentos de tipo industrial. A operação é acompanhada por baixos níveis de ruído.
Nosso catálogo oferece itens de bronze com diâmetro interno a partir de 10 mm e diâmetro externo a partir de 12 mm. O formato é cilíndrico. A liga de bronze foi usada na produção, o que atende aos requisitos do padrão internacional DIN 17662.
Bucha BUS77792
Peças de reposição em BRONZE SINTERIZADO AUTOLUBRIFICANTES para máquinas de mineração.TABELA DE TAMANHOS DE ROLAMENTOS DE BRONZE ENVELOPADO.pdf
| Arte. Nr. | d/PxL | Arte. Nr. | d/PxL | Arte. Nr. | d/PxL | ||
| BMz1720 | 17/19x20 | BMZ2528 | 25/28x28 | ||||
| BMZ1010 | 10/12x10 | BMZ1725 | 17/19x25 | BMZ2530 | 25/28x30 | ||
| BMZ1012 | 10/12x12 | BMz 1808 | 18/20x8 | BMZ2532 | 25/28x32 | ||
| BMZ1015 | 10/12x15 | BMZ1810 | 18/20x10 | BMZ2535 | 25/28x35 | ||
| BMZ1020 | 10/12x20 | BMZ 1812 | 18/20x12 | BMZ 2540 | 25/28x40 | ||
| BMZ1108 | 11/13x8 | BMZ1815 | 18/20x15 | BMZ2550 | 25/28x50 | ||
| BMZ1109 | 11/13x9 | ||||||
| BMZ1110 | 11/13x10 | BMz 1820 | 18/20x20 | BMZ2560 | 25/28x60 | ||
| BMZ1112 | 11/13x12 | ||||||
| BMZ1206 | 12/14x6 | BMZ 1825 | 18/20x25 | BMZ 2610 | 26/30x10 | ||
| BMZ1208 | 12/14x8 | BMZ 1830 | 18/20x30 | BMZ 2612 | 26/30x12 | ||
| BMZ1210 | 12/14x10 | BMZ 2008a | 20/22x8 | BMZ2615 | 26/30x15 | ||
| BMZ1212 | 12/14x12 | BMZ 2010a | 20/22x10 | BMZ 2620 | 26/30x20 | ||
| BMZ1214 | 12/14x14 | BMZ 2012a | 20/22x12 | BMZ 2625 | 26/30x25 | ||
| BMZ1215 | 12/14x15 | BMZ 2015a | 20/22x15 | BMZ 2630 | 26/30x30 | ||
| BMZ1216 | 12/14x16 | BMZ 2020a | 20/22x20 | BMZ 2635 | 26/30x35 | ||
| BMZ1220 | 12/14x20 | BMZ2025a | 20/22x25 | BMZ2640 | 26/30x40 | ||
| BMZ1225 | 12/14x25 | BMZ 2030a | 20/22x30 | BMZ2650 | 26/30x50 | ||
| BMZ1308 | 13/15x8 | BMZ2035a | 20/22x35 | BMZ2810a | 28/31x10 | ||
| BMZ1309 | 13/15x9 | BMZ 2040a | 20/22x40 | BMZ2812a | 28/31x12 | ||
| BMZ1310 | 13/15x10 | BMZ 2008b | 20/23x8 | BMZ2815a | 28/31x15 | ||
| BMZ1312 | 13/15x12 | BMZ 2010b | 20/23x10 | BMZ2820a | 28/31x20 | ||
| BMZ1315 | 13/15x15 | BMZ2012b | 20/23x12 | BMZ2825a | 28/31x25 | ||
| BMZ1410 | 14/16x10 | BMZ 2015b | 20/23x15 | BMZ2830a | 28/31x30 | ||
| BMZ1412 | 14/16x12 | BMZ 2020b | 20/23x20 | BMZ2832a | 28/31x32 | ||
| BMZ1415 | 14/16x15 | BMZ 2025b | 20/23x25 | BMZ2835a | 28/31x35 | ||
| BMZ1420 | 14/16x20 | BMZ 2030b | 20/23x30 | BMZ 2840a | 28/31x40 | ||
| BMZ1422 | 14/16x22 | BMZ 2035b | 20/23x35 | BMZ 2810b | 28/32x10 | ||
| BMZ1425 | 14/16x25 | BMZ 2040b | 20/23x40 | BMZ2812b | 28/32x12 | ||
| BMZ1508 | 15/17x8 | BMZ2210 | 22/25x10 | BMZ 2815b | 28/32x15 | ||
| BMZ1510 | 15/17x10 | BMZ 2212 | 22/25x12 | BMZ 2820b | 28/32x20 | ||
| BMZ1512 | 15/17x12 | BMZ 2215 | 22/25x15 | BMZ 2825b | 28/32x25 | ||
| BMZ1515 | 15/17x15 | BMZ2220 | 22/25x20 | BMZ2830b | 28/32x30 | ||
| BMZ1518 | 15/17x18 | BMZ 2225 | 22/25x25 | BMZ 2832b | 28/32x32 | ||
| BMZ1520 | 15/17x20 | BMZ2230 | 22/25x30 | BMZ2835b | 28/32x35 | ||
| BMZ1525 | 15/17x25 | BMZ2235 | 22/25x35 | BMZ2840b | 28/32x40 | ||
| BMZ1608 | 16/18x8 | BMZ 2238 | 22/25x38 | BMZ 3010 | 30/34x10 | ||
| BMZ1610 | 16/18x10 | BMZ 2240 | 22/25x40 | BMZ 3012 | 30/34x12 | ||
| BMZ1612 | 16/18x12 | BMZ2245 | 22/25x45 | BMZ 3015 | 30/34x15 | ||
| BMZ1615 | 16/18x15 | BMZ2250 | 22/25x50 | BMZ 3020 | 30/34x20 | ||
| BMZ1618 | 16/18x18 | BMZ2410a | 24/27x10 | BMZ3025 | 30/34x25 | ||
| BMZ1620 | 16/18x20 | BMZ2412a | 24/27x12 | BMZ3028 | 30/34x28 | ||
| BMZ1625 | 16/18x25 | BMZ2415a | 24/27x15 | BMZ 3030 | 30/34x30 | ||
| BMZ1708 | 17/19x8 | BMZ 2420a | 24/27x20 | BMZ 3032 | 30/34x32 | ||
| BMZ1710 | 17/19x10 | BMZ2425a | 24/27x25 | BMZ 3035 | 30/34x35 | ||
| BMZ1712 | 17/19x12 | BMZ2428a | 24/27x28 | BMZ 3038 | 30/34x38 | ||
| BM71715 | 17/19x15 | BMZ2430a | 24/27x30 | BMZ3040 | 30/34x40 | ||
| BMZ1718 | 17/19x18 | BMZ2432a | 24l27x32 | BMZ3045 | 30/34x45 | ||
| BMZ 2435a | 24/27x35 | BMZ 3050 | 30/34x50 | ||||
| BMZ2438a | 24/27x38 | BMZ3210 | 32/36x10 | ||||
| BMZ2440a | 24/27x40 | BMZ3212 | 32/36x12 | ||||
| BMZ 2450a | 24/27x50 | BMZ3215 | 32/36x15 | ||||
| BMZ2410b | 24/28x10 | BMZ3218 | 32/36x18 | ||||
| BMZ2412b | 24/28x12 | BMZ3220 | 32/36x20 | ||||
| BMZ2415b | 24/28x15 | BMZ 3225 | 32/36x25 | ||||
| BMZ2420b | 24/28x20 | BMZ3230 | 32/36x30 | ||||
| BMZ2425b | 24/28x25 | BMZ3235 | 32/36x35 | ||||
| BMZ2428b | 24/28x28 | BMZ3240 | 32/36x40 | ||||
| BMZ2430b | 24/28x30 | BMZ 3245 | 32/36x45 | ||||
| BMZ2432b | 24/28x32 | BMZ 3250 | 32/36x50 | ||||
| BMZ 2435b | 24/28x35 | BMZ 3410 | 34/38x10 | ||||
| BM72438b | 24/28x38 | BMZ 3412 | 34/38x12 | ||||
| BMZ2440b | 24/28x40 | BMZ 3415 | 34/38x15 | ||||
| BMZ2450b | 24/28x50 | BMZ 3420 | 34/38x20 | ||||
| BMZ 2510 | 25/28x10 | BMZ 3425 | 34/38x25 | ||||
| BMZ2512 | 25/28x12 | BMZ3430 | 34/38x30 | ||||
| BMZ 2515 | 25/28x15 | BMZ3435 | 34/38x35 | ||||
| BMZ2520 | 25/28x20 | BM730 | 34/38x0 | ||||
| BMZ2525 | 25/28x25 | BMZ3445 | 34/38x45 | ||||
| Arte. Nr. | d/PxL | Arte. Nr. | d/PxL | Arte. Nr. | d/PxL |
| BMZ3510 | 35/39x10 | BMZ4530 | 45/50x30 | BMZ7560 | 75/80x60 |
| BMZ3512 | 35/39x12 | BMZ4535 | 45/50x35 | BMZ7570 | 75/80x70 |
| BMZ3515 | 35/39x15 | BMZ4540 | 45/50x40 | BMZ7580 | 75/80x80 |
| BMZ3520 | 35/39x20 | BMZ4545 | 45/50x45 | BMZ7590 | 75/80x90 |
| BMZ3525 | 35/39x25 | BMZ4550 | 45/50x50 | BMZ8030 | 80/85x30 |
| BMZ3530 | 35/39x30 | BMZ 4555 | 45/50x55 | BMZ 8040 | 80/85x40 |
| BMZ3535 | 35/39x35 | BMZ4560 | 45/50x60 | BMZ8050 | 80/85x50 |
| BMZ3540 | 35/39x40 | BMZ5015 | 50/55x15 | BMZ8060 | 80/85x60 |
| BMZ3545 | 35/39x45 | BMz5020 | 50/55x20 | BMZ8070 | 80/85x70 |
| BMZ3550 | 35/39x50 | BMZ 5025 | 50/55x25 | BMZ 8080 | 80/85x80 |
| BMZ3610 | 36/40x10 | BMZ5030 | 50/55x30 | BMZ8090 | 80/85x90 |
| BMZ3612 | 36/40x12 | BMZ 5035 | 50/55x35 | BMZ80100 | 80/85x100 |
| BMZ3615 | 36/40x15 | BMZ 5040 | 50/55x40 | BMZ8530 | 85/90x30 |
| BMZ3620 | 36/40x20 | BMZ 5045 | 50/55x45 | BMZ8540 | 85/90x40 |
| BMZ3625 | 36/40x25 | BMZ 5050 | 50/55x50 | BMZ8550 | 85/90x50 |
| BMZ3630 | 36/40x30 | BMZ 5055 | 50/55x55 | BMZ8560 | 85/90x60 |
| BMZ3635 | 36/40x35 | BMZ5060 | 50/55x60 | BMZ8570 | 85/90x70 |
| BMZ3640 | 36/40x40 | BMZ 5065 | 50/55x65 | BMZ 8580 | 85/90x80 |
| BMZ3645 | 36/40x45 | BMZ5070 | 50/55x70 | BMZ8590 | 85/90x90 |
| BMZ3650 | 36/40x50 | BMZ5515 | 55/60x15 | BMZ85100 | 85/90x100 |
| BMZ3812 | 38/42x12 | BMZ5520 | 55/60x20 | BMz9030 | 90/95x30 |
| BMZ3815 | 38/42x15 | BMZ5525 | 55/60x25 | BMZ9040 | 90/95x40 |
| BMZ3820 | 38/42x20 | BMZ5530 | 55/60x30 | BMZ 9050 | 90/95x50 |
| BMZ3825 | 38/42x25 | BMZ5535 | 55/60x35 | BMZ 9060 | 90/95x60 |
| BMZ3830 | 38/42x30 | BMZ5540 | 55/60x40 | BMZ9070 | 90/95x70 |
| BMZ3835 | 38/42x35 | BMZ 5545 | 55/60x45 | BMZ 9080 | 90/95x80 |
| BMZ 3840 | 38/42x40 | BMZ5550 | 55/60x50 | BMZ 9090 | 90/95x90 |
| BMZ 3845 | 38/42x45 | BMZ 5555 | 55/60x55 | BMZ 90100 | 90/95x100 |
| BMZ3850 | 38/42x50 | BMZ 5560 | 55/60x60 | BMZ9530 | 95/100x30 |
| BMZ3855 | 38/42x55 | BMZ 5565 | 55/60x65 | BMZ 9540 | 95/100x40 |
| BMZ3860 | 38/42x60 | BMZ 5570 | 55/60x70 | BMZ 9550 | 95/100x50 |
| BMZ4012 | 40/44x12 | BMZ6015 | 60/65x15 | BMZ 9560 | 95/100x60 |
| BMZ 4015 | 40/44x15 | BMZ 6020 | 60/65x20 | BMZ 9570 | 95/100x70 |
| BMZ 4020 | 40/44x20 | BMZ 6025 | 60/65x25 | BMZ 9580 | 95/100x80 |
| BMZ4025 | 40/44x25 | BMZ6030 | 60/65x30 | BMZ9590 | 95/100x90 |
| BMZ4030 | 40/4x30 | BMZ6035 | 60/65x35 | BMZ95100 | 95/100x100 |
| BMZ4035 | 40/44x35 | BMZ6040 | 60/65x40 | BMZ10030 | 100/105x30 |
| BMZ4040 | 40/44x40 | BMZ6045 | 60/65x45 | BMZ10040 | 100/105x40 |
| BMZ4045 | 40/44x45 | BMZ6050 | 60/65x50 | BMZ10050 | 100/105x50 |
| BMZ 4050 | 40/44x50 | BMZ6055 | 60/65x55 | BMZ10060 | 100/105x60 |
| BMZ4055 | 40/44x55 | BMZ6060 | 60/65x60 | BMZ10070 | 100/105x70 |
| BMZ 4060 | 40/44x60 | BMZ6065 | 60/65x65 | BMZ 10080 | 100/105x80 |
| BMZ4212 | 42/46x12 | BMZ 6070 | 60/65x70 | BMZ 10090 | 100/105x90 |
| BMZ4215 | 42/46x15 | BMZ6075 | 60/65x75 | BMZ100100 | 100/105x100 |
| BMZ 4220 | 42/46x20 | BMZ 6080 | 60/65x80 | BMZ 100115 | 100/105x115 |
| BMZ4225 | 42/46x25 | BMZ 6085 | 60/65x85 | BMZ10550 | 105/110x50 |
| BMZ4230 | 42/46x30 | BMZ 6090 | 60/65x90 | BMZ10560 | 105/110x60 |
| BMZ4235 | 42/46x35 | BMZ6515 | 65/70x15 | BMZ 10570 | 105/110x70 |
| BMZ4240 | 42/46x40 | BMZ 6520 | 65/70x20 | BMZ 10580 | 105/110x80 |
| BMZ4245 | 42/46x45 | BMZ6530 | 65/70x30 | BMZ10590 | 105/110x90 |
| BMZ4250 | 42/46x50 | BMZ6540 | 65/70x40 | BMZ105100 | 105/11x100 |
| BMZ4255 | 42/46x55 | BMZ 6550 | 65/70x50 | BMZ105115 | 105/110x115 |
| BMZ4260 | 42/46x60 | BMZ6560 | 65/70x60 | BMZ11050 | 110/115x50 |
| BMZ4412 | 44/48x12 | BMZ6570 | 65/70x70 | BMZ11060 | 110/115x60 |
| BMZ4415 | 44/48x15 | BMZ6580 | 65/70x80 | BMZ11070 | 110/115x70 |
| BMZ4420 | 44/48x20 | BMZ6590 | 65/70x90 | BMZ11080 | 110/115x80 |
| BMZ4425 | 44/48x25 | BMZ 7020 | 70/75x20 | BMZ 11090 | 110/115x90 |
| BMZ 4430 | 44/48x30 | BMZ 7030 | 70/75x30 | BMZ110100 | 110/115x100 |
| BMZ4435 | 44/48x35 | BMZ7040 | 70/75x40 | BMZ110115 | 110/115x115 |
| BMZ4440 | 44/48x40 | BMZ7050 | 70/75x50 | BMZ11550 | 115/120x50 |
| BMZ 4445 | 44/48x45 | BMZ 7060 | 70/75x60 | BMZ 11560 | 115/120x60 |
| BM74450 | 44/48x50 | BMZ 7070 | 70/75x70 | BMZ11570 | 115/12x70 |
| BMZ4455 | 44/48x55 | BMZ 7080 | 70/75x80 | BMZ 11580 | 115/120x80 |
| BMZ 4460 | 44/48x60 | BMZ 7090 | 70/75x90 | BMZ 11590 | 115/120x90 |
| BMZ4515 | 45/50x15 | BMZ 7530 | 75/80x30 | BMZ115100 | 115/120x100 |
| BMZ 4520 | 45/50x20 | BMZ7540 | 75/80x40 | BMZ115115 | 115/120x115 |
| BMZ 4525 | 45/50x25 | BMZ7550 | 75/80x50 | BMZ 12050 | 120/125x50 |
| Arte. Nr. | d/PxL | Arte. Nr. | d/PxL | Arte. Nr. | d/ DxL |
| BMZ12060 | 120/125x60 | BMz17060 | 170/175x60 | BMZ 200130 | 200/205x130 |
| BMZ12070 | 120/125x70 | BMZ 17070 | 170/175x70 | BMZ200140 | 200/205x140 |
| BMZ12080 | 120/125x80 | BMZ17080 | 170/175x80 | BMz 200150 | 200/205x150 |
| BMZ 12090 | 120/125x90 | BMZ 17090 | 170/175x90 | BMZ20560 | 205/210x60 |
| BMZ 120100 | 120/125x100 | BMZ170100 | 170/175x100 | BMZ20570 | 205/210x70 |
| BMZ 120120 | 120/125x120 | BMz170110 | 170/175x110 | BMZ20580 | 205/210x80 |
| BMz12550 | 125/130x50 | BMz170120 | 170/175x120 | BMz20590 | 205/210x90 |
| BMZ12560 | 125/130x60 | BMZ170130 | 170/175x130 | BMZ 205100 | 205/210x100 |
| BMZ12570 | 125/130x70 | BMZ170140 | 170/175x140 | BMZ205110 | 205/210x110 |
| BMZ12580 | 125/130x80 | BMZ170150 | 170/175x150 | BMZ 205120 | 205/210x120 |
| BMZ12590 | 125/130x90 | BMZ 17560 | 175/180x60 | BMZ 205130 | 205/210x130 |
| BMZ125100 | 125/130x100 | BMz17570 | 175/180x70 | BMZ205140 | 205/210x140 |
| BMZ125115 | 125/130x115 | BMZ 17580 | 175/180x80 | BMZ 205150 | 205/210x150 |
| BMZ13060 | 130/135x60 | BMZ17590 | 175/180x90 | BMZ21060 | 210/215x60 |
| BMZ13070 | 130/135x70 | BMZ175100 | 175/180x100 | BMZ21070 | 210/215x70 |
| BMZ13080 | 130/135x80 | BMZ175110 | 175/180x110 | BMZ21080 | 210/215x80 |
| BMZ13090 | 130/135x90 | BMZ175120 | 175/180x120 | BMZ21090 | 210/215x90 |
| BMZ130100 | 130/135x100 | BMZ175130 | 175/180x130 | BMZ210100 | 210/215x100 |
| BMZ130120 | 130/135x120 | BMZ175140 | 175/180x140 | BMZ210110 | 210/215x110 |
| BMZ13560 | 135/140x60 | BMZ175150 | 175/180x150 | BMZ 210120 | 210/215x120 |
| BMZ13570 | 135/140x70 | BMZ18060 | 180/185x60 | BMZ210130 | 210/215x130 |
| BMZ13580 | 135/140x80 | BMZ 18070 | 180/185x70 | BMZ 210140 | 210/215x140 |
| BMZ13590 | 135/140x90 | BMZ 18080 | 180/185x80 | BMZ210150 | 210/215x150 |
| BMZ 135100 | 135/140x100 | BMZ 18090 | 180/185x90 | BMZ21560 | 215/220x60 |
| BMZ135120 | 135/140x120 | BMZ180100 | 180/185x100 | BMZ21570 | 215/220x70 |
| BMZ 14060 | 140/145x60 | BMZ180110 | 180/185x110 | BMZ21580 | 215/220x80 |
| BMZ14070 | 140/145x70 | BMZ180120 | 180/185x120 | BMZ21590 | 215/220x90 |
| BMZ 14080 | 140/145x80 | BMZ180130 | 180/185x130 | BMZ215100 | 215/220x100 |
| BMZ14090 | 140/145x90 | BMZ180140 | 180/185x140 | BMZ215110 | 215/220x110 |
| BMZ 140100 | 140/145x100 | BMZ180150 | 180/185x150 | BMZ 215120 | 215/220x120 |
| BMZ 14560 | 145/150x60 | BMZ 18560 | 185/190x60 | BMZ 215130 | 215/220x130 |
| BMZ14570 | 145/150x70 | BMZ 18570 | 185/190x70 | BMZ 215140 | 215/220x140 |
| BMZ14580 | 145/150x80 | BMZ18580 | 185/190x80 | BMZ215150 | 215/220x150 |
| BMZ14590 | 145/150x90 | BMZ 18590 | 185/190x90 | BMZ22060 | 220/225x60 |
| BMZ145100 | 145/150x100 | BMZ185100 | 185/190x100 | BMZ22070 | 220/225x70 |
| BMZ 145120 | 145/150x120 | BMZ185110 | 185/190x110 | BMZ22080 | 220/225x80 |
| BMZ15060 | 150/155x60 | BMZ185120 | 185/190x120 | BMZ22090 | 220/225x90 |
| BMZ15070 | 150/155x70 | BM7185130 | 185/190x130 | BMZ 220100 | 220/225x100 |
| BMZ15080 | 150/155x80 | BMZ185140 | 185/190x140 | BMZ220110 | 220/225x110 |
| BMZ15090 | 150/155x90 | BMZ185150 | 185/190x150 | BMZ220120 | 220/225x120 |
| BMZ 150100 | 150/155x100 | BMZ 19060 | 190/195x60 | BMZ 220130 | 220/225x130 |
| BMZ15550 | 155/160x50 | BMZ19070 | 190/195x70 | BMZ220140 | 220/225x140 |
| BMZ15560 | 155/160x60 | BMZ 19080 | 190/195x80 | BMZ 220150 | 220/225x150 |
| BMZ15570 | 155/160x70 | BMz19090 | 190/195x90 | BMZ22560 | 225/230x60 |
| BMZ15580 | 155/160x80 | BMZ190100 | 190/195x100 | BMZ22570 | 225/230x70 |
| BMZ15590 | 155/160x90 | BMZ190110 | 190/195x110 | BMZ22580 | 225/230x80 |
| BMZ155100 | 155/160x100 | BMZ190120 | 190/195x120 | BMZ22590 | 225/230x90 |
| BMZ16060 | 160/165x60 | BMZ190130 | 190/195x130 | BMZ225100 | 225/230x100 |
| BMZ16070 | 160/165x70 | BMZ190140 | 190/195x140 | BMZ 225110 | 225/230x110 |
| BMZ16080 | 160/165x80 | BMZ190150 | 190/195x150 | BMZ225120 | 225/230x120 |
| BMZ16090 | 160/165x90 | BMZ19560 | 195/200x60 | BMZ225130 | 225/230x130 |
| BMZ160100 | 160/165x100 | BMZ19570 | 195/200x70 | BMZ225140 | 225/230x140 |
| BMZ160110 | 160/165x110 | BMZ19580 | 195/200x80 | BMZ225150 | 225/230x150 |
| BMZ160120 | 160/165x120 | BMZ19590 | 195/200x90 | BMZ23060 | 230/235x60 |
| BMZ160130 | 160/165x130 | BMZ195100 | 195/200x100 | BMZ23070 | 230/235x70 |
| BMZ160140 | 160/165x140 | BMZ195110 | 195/200x110 | BMZ23080 | 230/235x80 |
| BMZ160150 | 160/165x150 | BMZ195120 | 195/200x120 | BMZ23090 | 230/235x90 |
| BMZ16560 | 165/170x60 | BMZ195130 | 195/200x130 | BMZ230100 | 230/235x100 |
| BMZ 16570 | 165/170x70 | BMZ195140 | 195/200x140 | BMZ 230110 | 230/235x110 |
| BMZ16580 | 165/170x80 | BMZ195150 | 195/200x150 | BMZ230120 | 230/235x120 |
| BMZ 16590 | 165/170x90 | BMZ 20060 | 200/205x60 | BMZ 230130 | 230/235x130 |
| BMZ165100 | 165/17x100 | BMZ 20070 | 200/205x70 | BMZ 230140 | 230/235x140 |
| BMZ 165110 | 165/170x110 | BMZ 20080 | 200/205x80 | BMZ 230150 | 230/235x150 |
| RM716120 | 165/170x120 | BMZ 20090 | 200/205x90 | BMZ24060 | 240/245x60 |
| RMZ165130 | 165/170x130 | BMZ 200100 | 200/205x00 | BMZ24070 | 240/245x70 |
| RM7165140 | 165/170x140 | BM7200110 | 200/205x110 | BMZ24080 | 240/245x80 |
| RM7165150 | 165/170x150 | BMZ200120 | 200/205x120 | BMZ24090 | 240/245x90 |
| Arte. Nr. | d/PxL |
| BMZ240100 | 240/245x100 |
| BMZ240110 | 240/245x110 |
| BMZ240120 | 240/245x120 |
| BMZ240130 | 240/245x130 |
| BMZ240140 | 240/245x140 |
| BMZ240150 | 240/245x150 |
| BMZ 25060 | 250/255x60 |
| BMZ 25070 | 250/255x70 |
| BMZ 25080 | 250/255x80 |
| BMZ 25090 | 250/255x90 |
| BMZ250100 | 250/255x100 |
| BMz250110 | 250/255x110 |
| BM7250120 | 250/255x130 |
| BMZ 250130 | 250/255x140 |
| BMZ250140 | 250/255x140 |
| BMZ250150 | 250/255x150 |
| BMZ26060 | 260/265x60 |
| BMZ 26070 | 260/265x70 |
| BMZ 26080 | 260/265x80 |
| BMZ26090 | 260/265x90 |
| BMZ260100 | 260/265x100 |
| BMZ260110 | 260/265x110 |
| BMZ260120 | 260/265x120 |
| BMZ260130 | 260/265x130 |
| BMZ260140 | 260/265x140 |
| BMZ260150 | 260/265x150 |
| BMZ27060 | 270/275x60 |
| BMZ 27070 | 270/275x70 |
| BMZ 27080 | 270/275x80 |
| BMZ27090 | 270/275x90 |
| BMZ270100 | 270/275x100 |
| BMZ270110 | 270/275x110 |
| BMZ270120 | 270/275x120 |
| BMZ270130 | 270/275x130 |
| BM7270140 | 270/275x140 |
| BMZ270150 | 270/275x150 |
| BMZ28060 | 280/285x60 |
| BMZ28070 | 280/285x70 |
| BMZ 28080 | 280/285x80 |
| BMZ28090 | 280/285x90 |
| BMZ 280100 | 280/285x100 |
| BMZ280110 | 280/285x110 |
| BMZ280120 | 280/285x120 |
| BMZ280130 | 280/285x130 |
| BMZ280140 | 280/285x140 |
| BMZ280150 | 280/285x150 |
| BMZ29060 | 290/295x60 |
| BMZ29070 | 290/295x70 |
| BMZ 29080 | 290/295x80 |
| BMZ29090 | 290/295x90 |
| BMZ290100 | 290/295x100 |
| BMZ290110 | 290/295x110 |
| BMZ290120 | 290/295x120 |
| BMZ290130 | 290/295x130 |
| BMZ290140 | 290/295x140 |
| BM7290150 | 290/295x150 |
| BMZ30060 | 300/305x60 |
| BMZ30070 | 300/305x70 |
| BMZ 30080 | 300/305x80 |
| BMZ30090 | 300/305x90 |
| BMZ 300100 | 300/305x100 |
| BMZ300110 | 300/305 x 10 |
| BMZ 300120 | 300/305 x 20 |
